15km FPV Fiber Optic

1. Parameters

• 15KM Fiber Canister Data Sheet
• Model: 15KM
• Fiber Diameter: 0.27 mm ± 0.1 mm
• Fiber Type: G657A2
• Fiber Length: 15,005 meters
• Fiber Weight: 80 g/km
• Fiber Connector:
• Default: FC/UPC
• Optional: ST / SC / LC
• Canister Size: Φ12 × 32 cm
• Weight (Fiber + Canister): 1,219 g
• Packing Dimensions: 38.5 × 17 × 17 cm
• Packing Weight: 1.59 kg
• Operating Temperature: -40°C to +85°C

2. Specifications

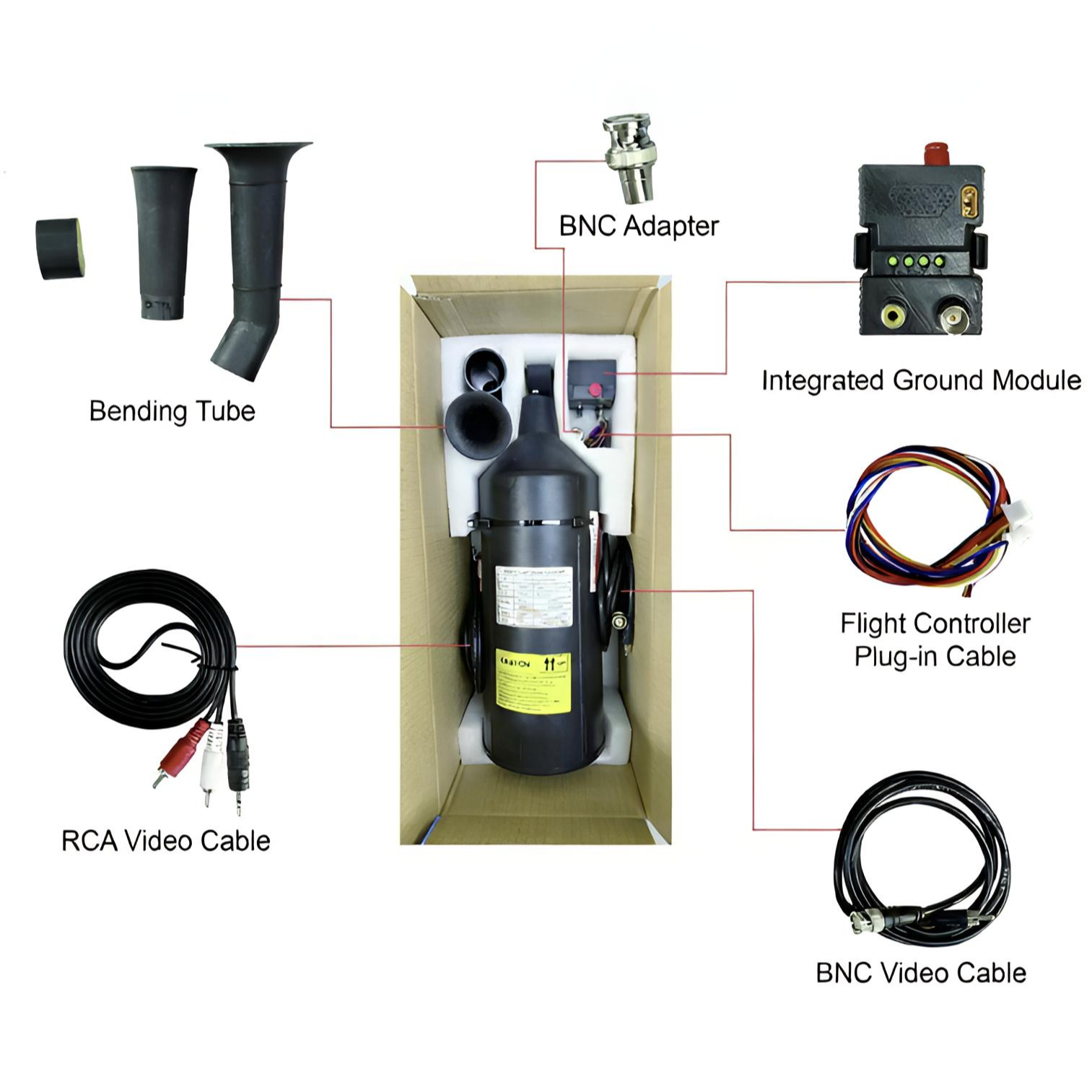

• Included Components:
• 15KM Fiber + Sky Module × 1
• Ground Unit × 1
• Adapter (Optional) × 1

3. Packaging

• Carton Size: 38.5 × 17 × 17 cm
• Total Packing Weight: 1.9 kg
