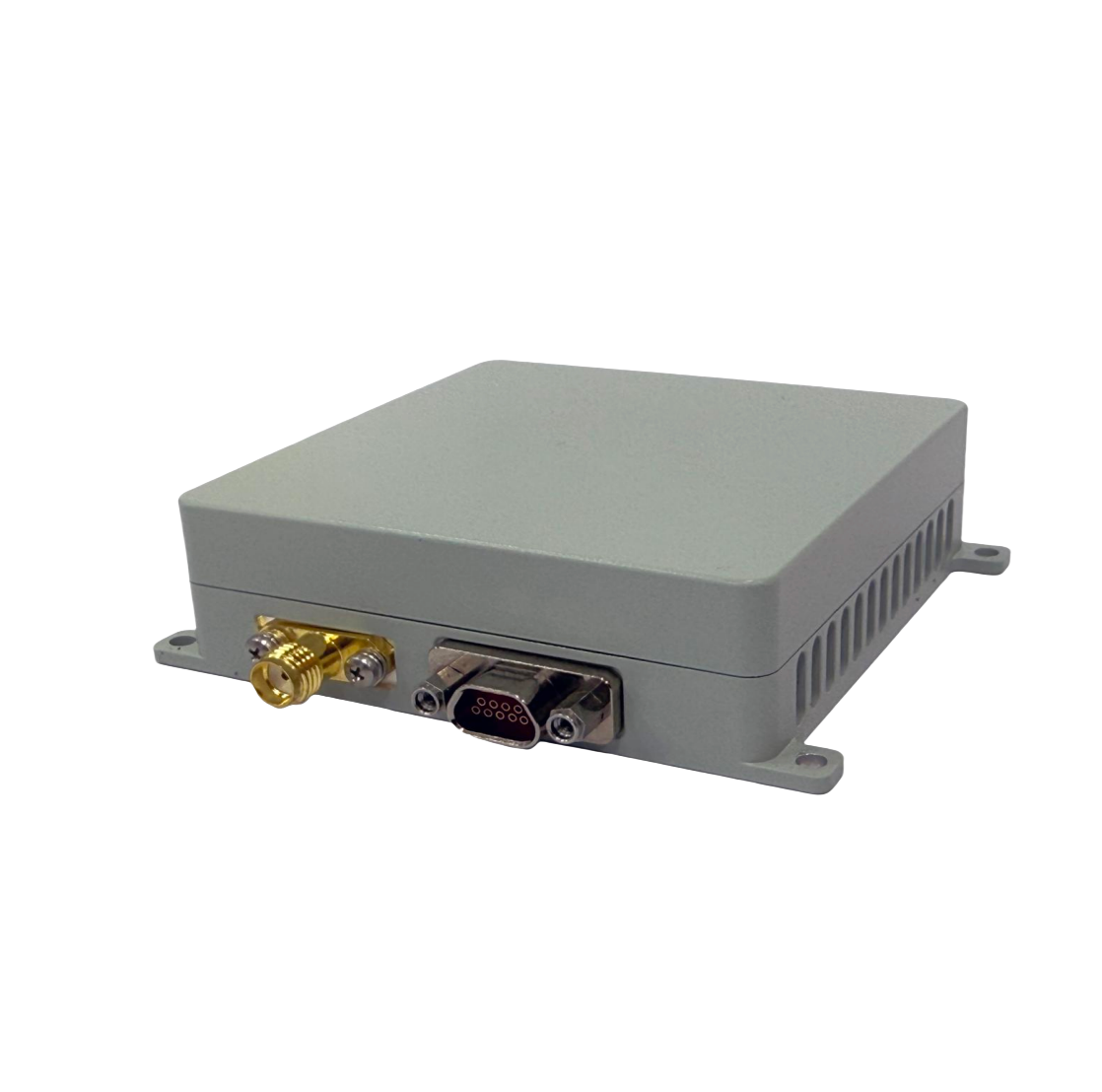

TX-S65-4CH-SNB
The 4-channel GNSS jamming module is an ultra-compact integrated jamming unit. Its functionality is highly integrated, featuring an ultra-small array antenna terminal with a 65mm aperture. Designed specifically for small to medium-sized UAVs and other platforms, as well as satellite navigation receivers, it offers miniaturization, light weight, and low cost.Anti-interference capability:
Unidirectional interference suppression: ≥ 95 dBc
Bidirectional interference suppression: ≥ 85 dBc
Three-way interference suppression: ≥ 80 dBc
Interference resistor:
Band-limited white Gaussian noise, matched spectrum (spread spectrum) interference, impulse interference, swept frequency interference, and composite interference.
Spatial anti-interference coverage range:
Azimuth: 0 ~ 360°
Altitude: -90 ~ 90 °
