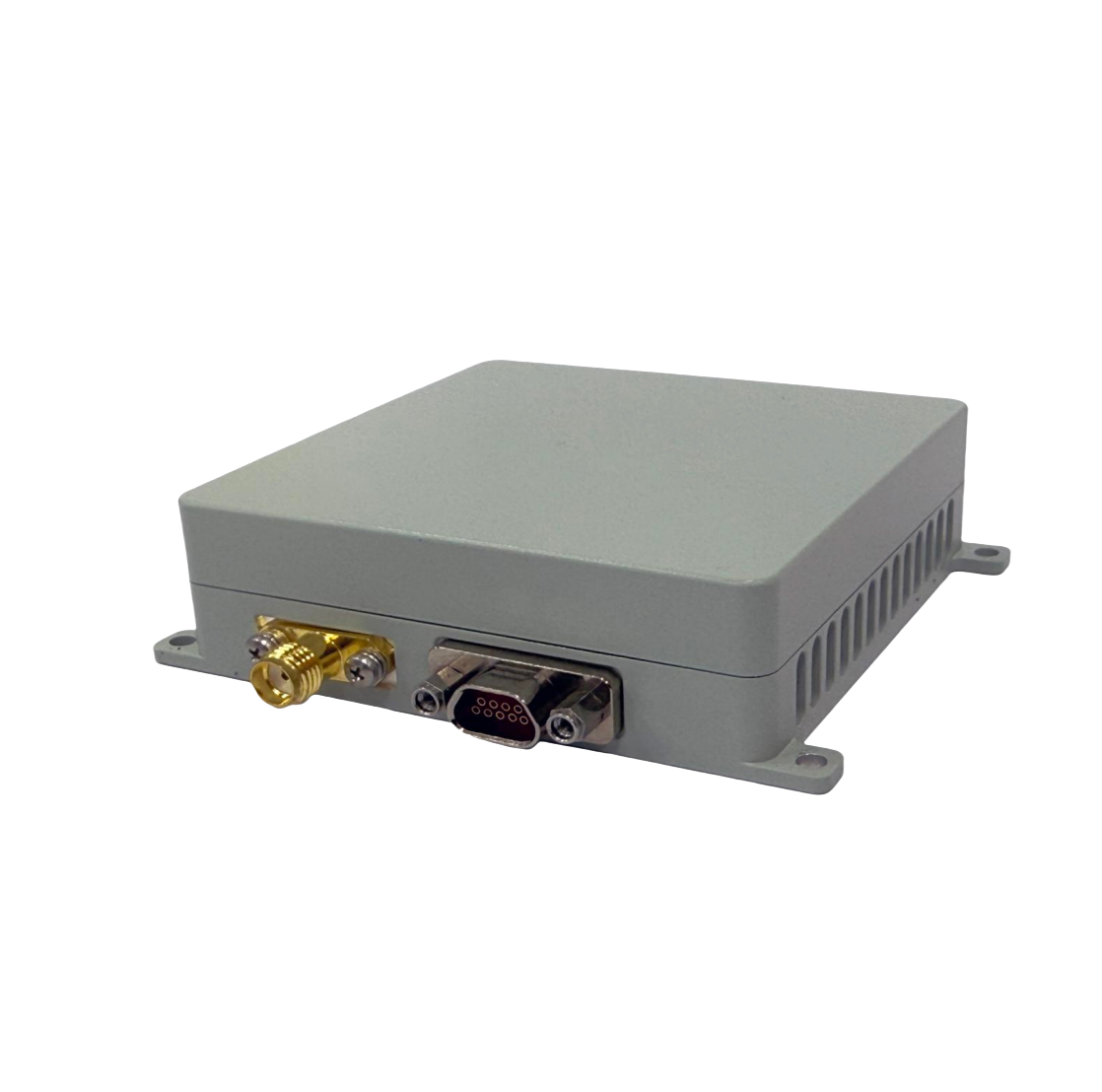

Drone Dual-Frequency Eight-Channel Satellite Signal Anti-Jamming Terminal

Dual-Frequency Eight-Channel Anti-Jamming Terminal

This terminal serves reliable navigation fields such as unmanned aerial vehicles (UAVs) and unmanned ground vehicles (UGVs), protecting user terminals from various unintentional interference and malicious attacks, significantly enhancing the security of Positioning, Navigation, and Timing (PNT) information.

Anti-Jamming Capability:

Single-direction jamming: ≥95 dBc

Three-direction jamming: ≥85 dBc

Jamming Types:

Band-limited Gaussian white noise jamming

Spread spectrum matched spectrum jamming

Pulse jamming

Swept-frequency jamming

Hybrid jamming

Anti-Jamming Spatial Range:

Azimuth: 0~360°

Elevation: -90~90°

Dimensions: 130 mm × 135 mm × 38 mm

Power Consumption: ≤10 W (at room temperature)

Weight: ≤400 g

RF Output Specifications:

Output signal frequencies: 1575.42 MHz and 1268.52 MHz

In-band output signal power: -65 ± 1 dBm
