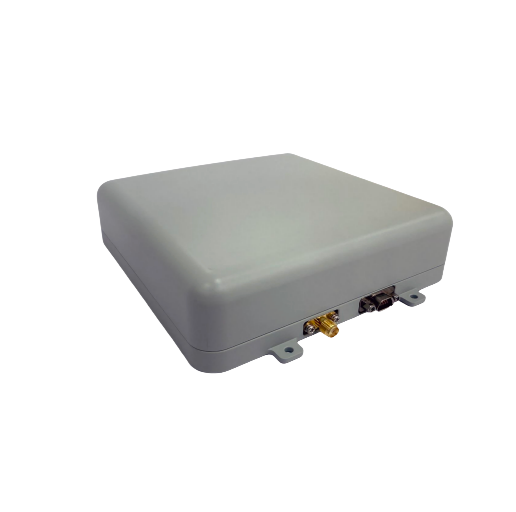

Dual-Band 8-Channel Anti-Jamming Terminal

Product Model: TX-007Pro-8CH-DF-WG-DR
Designed for reliable navigation in drones, unmanned ground vehicles, and other fields, this terminal protects user equipment from various unintentional interferences and malicious attacks, significantly enhancing PNT (Positioning, Navigation, and Timing) information security.

Anti-Jamming Performance:
  • Single-direction jamming suppression: ≥ 95 dBc
  • Three-direction jamming suppression: ≥ 85 dBc

Jamming Types Resisted:
  • Band-limited Gaussian white noise
  • Spread-spectrum matched spectrum jamming
  • Pulse jamming
  • Swept-frequency jamming
  • Hybrid jamming

Anti-Jamming Coverage:
  • Azimuth: 0–360°
  • Elevation:  -90° to +90°

Physical Specifications:
  • Dimensions: 130 mm × 135 mm × 38 mm
  • Power Consumption: ≤ 10 W (at room temperature)
  • Weight: ≤ 400 g

RF Output Specifications:
  • Output Signal Frequencies: 1575.42 MHz and 1268.52 MHz
  • In-band Output Power: -65 ± 1 dBm
