TX-009Pro-8CH-G1-WG-DT

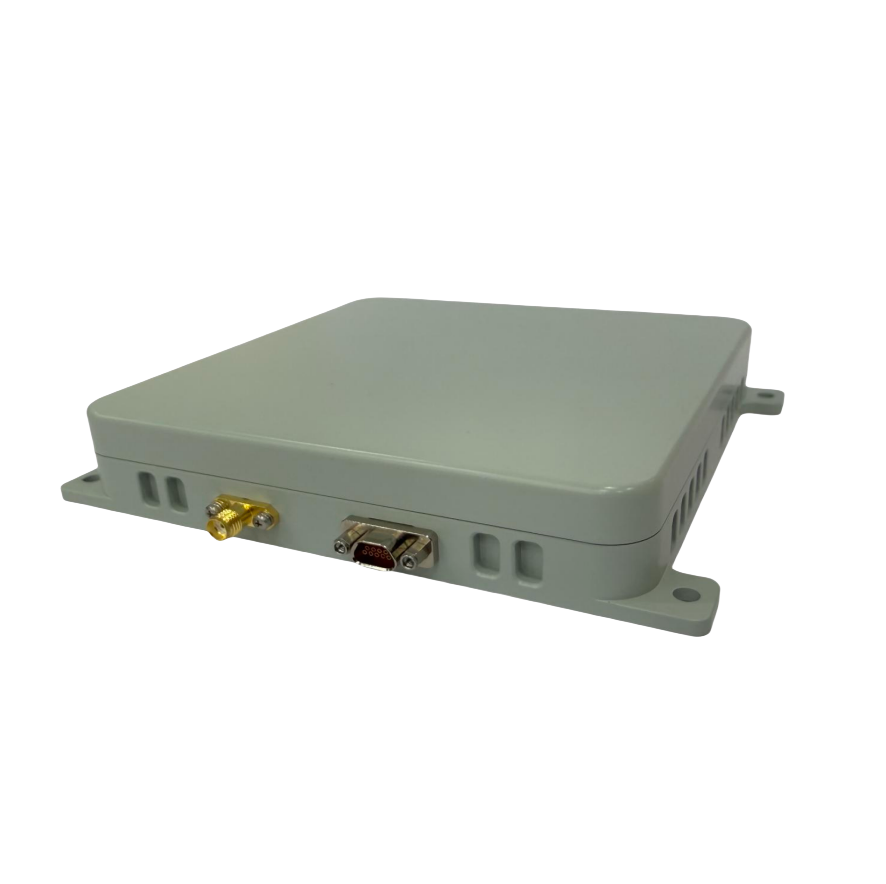

This UAV satellite navigation tri-frequency eight-channel anti-jamming terminal is a compact, integrated anti-jamming device designed specifically for civilian UAVs and industrial users. It supports tri-frequency signal reception (BDS-B1, GPS-L1, GLONASS-G1) and provides simultaneous broadband anti-jamming capability for all three systems, with a maximum anti-jamming capability against three interference sources. The device integrates an antenna array, anti-jamming module, and satellite navigation receiver, providing reliable navigation services for applications such as UAVs and autonomous vehicles. It protects user terminals from various unintentional interferences and malicious attacks, significantly enhancing PNT information security.Anti-interference capability:
One-way interference: ≥ 105 dBc
Three-way interference: ≥ 95 dBc
Interference type:
Band-limited Gaussian white noise interference, spread spectrum matched spectrum interference
Pulse interference, scanning interference
Mixed interference
Anti-interference range: Azimuth 0 ~ 360°, Elevation -90 ~ 90°
Dimensions: 150 mm × 130 mm × 21 mm
Power consumption: ≤ 12W (at room temperature)
Weight: ≤ 400g
RF output specifications:
Output signal frequency:
1561.098 MHz，1575.42 MHz，1602 MHz
In-band output power: -70 to -60 dBm
Output impedance: 50 ohms
