Miniaturized 7-Element Multi-System GNSS Anti-Jamming Terminal for UAVs

Miniaturized 7-Element Multi-System GNSS Anti-Jamming Terminal for UAVs

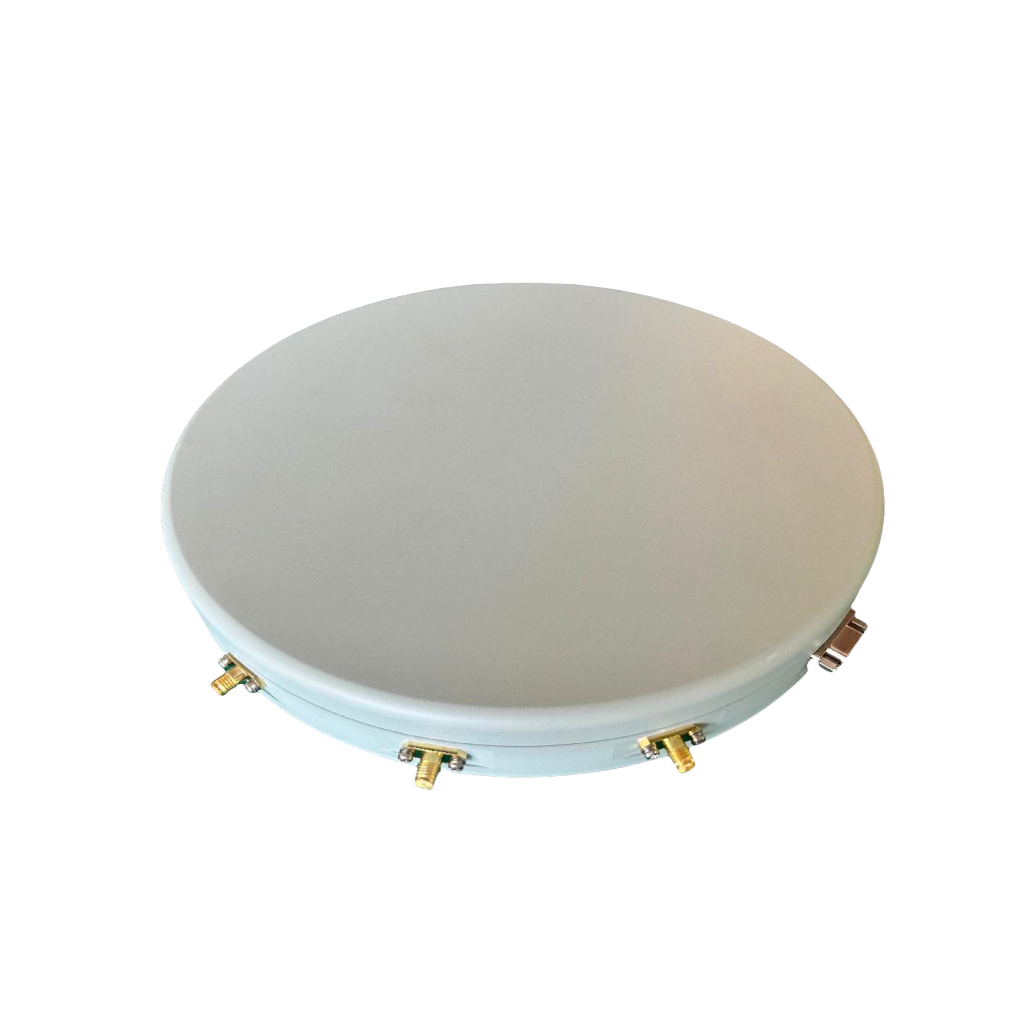

This miniaturized integrated anti-jamming unit is designed for civil UAVs and industrial applications, supporting BDS, GPS, GLONASS, and GALILEO systems. It provides anti-wideband jamming capability with resistance to up to six simultaneous interference sources. The device integrates an antenna array, anti-jamming module, and a GNSS receiver into a single compact unit, offering miniaturization, light weight, and low cost.

Anti-Jamming Performance:

Single-interference JSR (Jamming-to-Signal Ratio) suppression: ≥110 dB

Three-interference JSR suppression: ≥100 dB

Six-interference JSR suppression: ≥90 dB

Jamming Types:

Capable of suppressing jamming across BDS-B1, GPS-L1, GLONASS-G1, and GALILEO-E1 bands, including narrowband, wideband, pulse, sweep, and Gaussian noise jamming.

Anti-Jamming Coverage:

Azimuth: 0~360°

Elevation: -90~90°

Physical Specifications:

Dimensions: 220mm × 29.5mm (diameter × height)

Power consumption: ≤25 W (at room temperature)

Weight: ≤1200g
