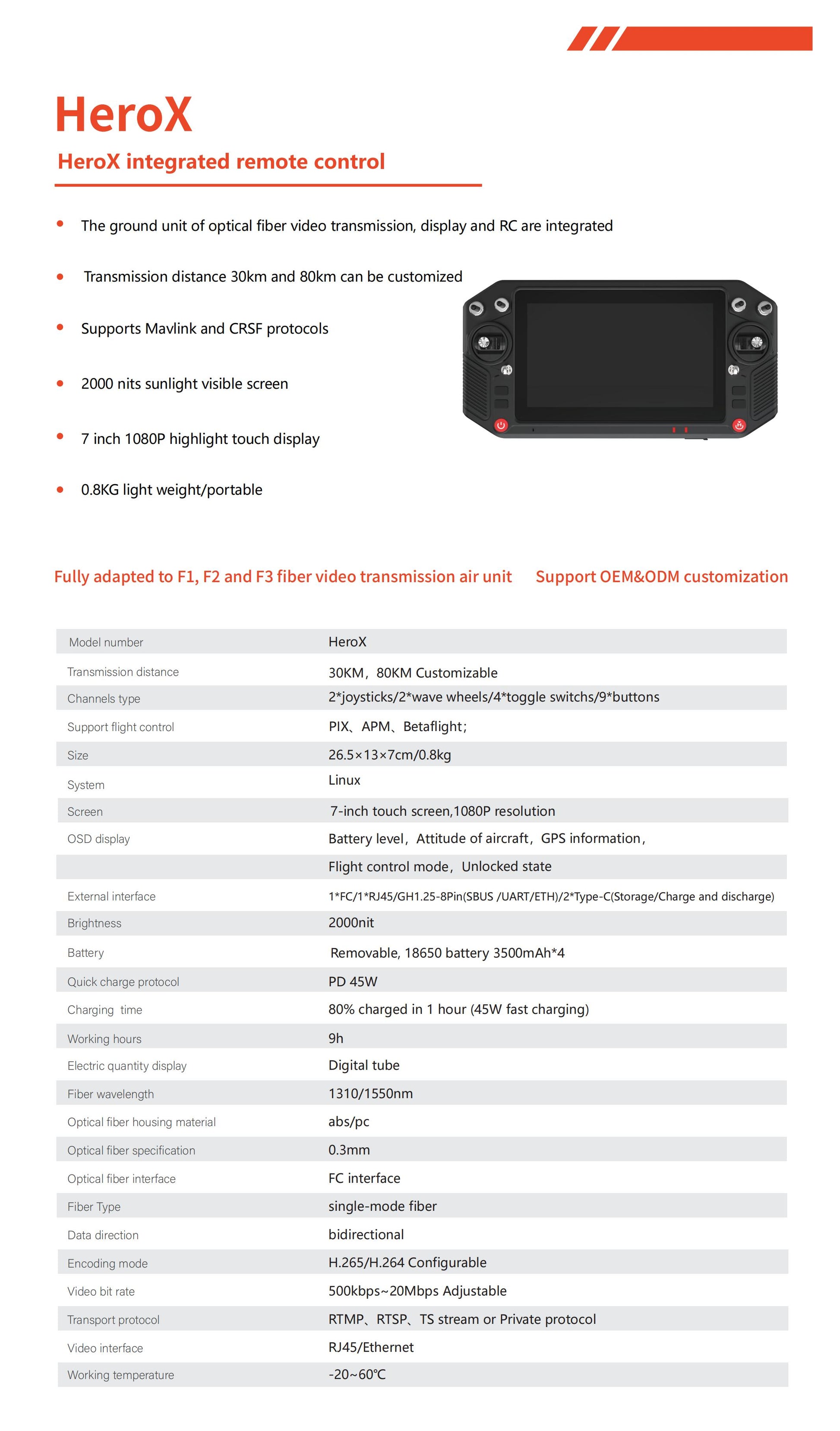

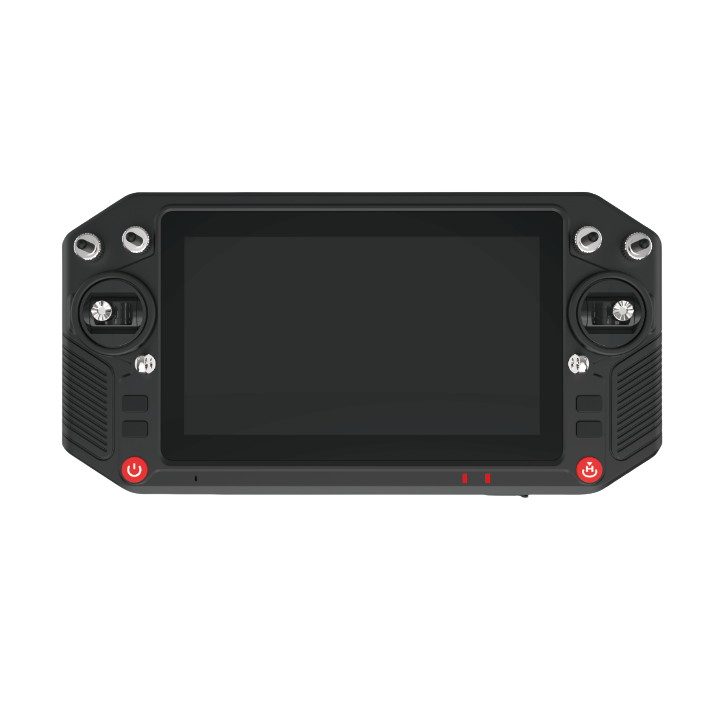

- The fiber optic video transmission, display, and RC grounding units are integrated.
- Transmission distance is customizable at 30 km and 80 km.
- Supports Mavlink and CRSF protocols.
- 2000 nits sunlight-visible screen.
- 7-inch 1080P high-brightness touchscreen display.
- Lightweight and portable at 0.8 kg.
|
model
|
Hero X
|
|
Transmission distance
|
30km and 80km are available for customization.
|
|
Channel type
|
2 joysticks / 2 wave wheels / 4 toggle switches / 9 buttons
|
|
Support flight control
|
PIX、APM、Betaflight；
|
|
size
|
26.5 × 13 × 7 cm / 0.8 kg
|
|
system
|
Linux
|
|
Screen
|
7-inch touchscreen, 1080P resolution
|
|
OSD monitor
|
Battery level, aircraft attitude, GPS information.
|
|
Flight control mode, unlocked
|
|
|
External Interface
|
1 * FC / 1 * RJ45 / GH1.25-8Pin (sfus/UART/ETH) / 2 * Type-C (storage/charging and discharging)
|
|
brightness
|
2000 nits
|
|
Battery
|
Removable, 3500mAh * 4 18650 batteries
|
|
Fast charging protocol
|
PD 45W
|
|
Charging time
|
Charges to 80% in 1 hour (45W fast charging)
|
|
Working hours
|
9 hours
|
|
Battery display
|
Digital tube
|
|
Fiber wavelength
|
1310/1550 nanometers
|
|
Fiber optic housing material
|
abs/pc
|
|
Fiber Optic Specifications
|
0.3 mm
|
|
Fiber optic interface
|
FC interface
|
|
Fiber type
|
single-mode fiber
|
|
Data direction
|
Two-way
|
|
Encoding mode
|
H.265/H.264 configurable
|
|
Video bitrate
|
Adjustable from 500kbps to 20mbps
|
|
Transmission Protocol
|
RTMP, RTSP, TS streams or proprietary protocols
|
|
Video interface
|
RJ45/Ethernet
|
|
Operating temperature
|
-20 ~ 60 °C
|
