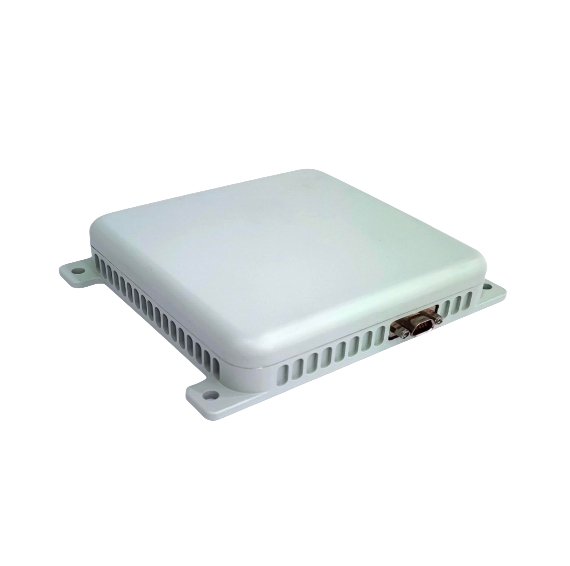

UAV Dual-Band 4-Channel GNSS Anti-Jam Terminal

Four-Channel Anti-Jamming Terminal

This product is a highly integrated ultra-compact array antenna anti-jamming terminal with a 100 mm aperture. It is primarily designed for small and medium-sized unmanned aerial vehicles (UAVs), protecting user terminals from various types of unintentional interference and malicious attacks, while significantly enhancing the security of Positioning, Navigation, and Timing (PNT) information.

Anti-Jamming Capability:

Single-direction jamming: ≥95 dBc

Three-direction jamming: ≥85 dBc

Jamming Types:

Band-limited Gaussian white noise

Spread spectrum matched spectrum jamming

Pulse jamming

Swept-frequency jamming

Hybrid jamming

Anti-Jamming Spatial Range:

Azimuth: 0°–360°

Elevation: -90°–90°

Dimensions: 100 mm × 100 mm × 25 mm

Power Consumption: 7.2 W (at room temperature, including positioning module)

Weight: ≤300g
