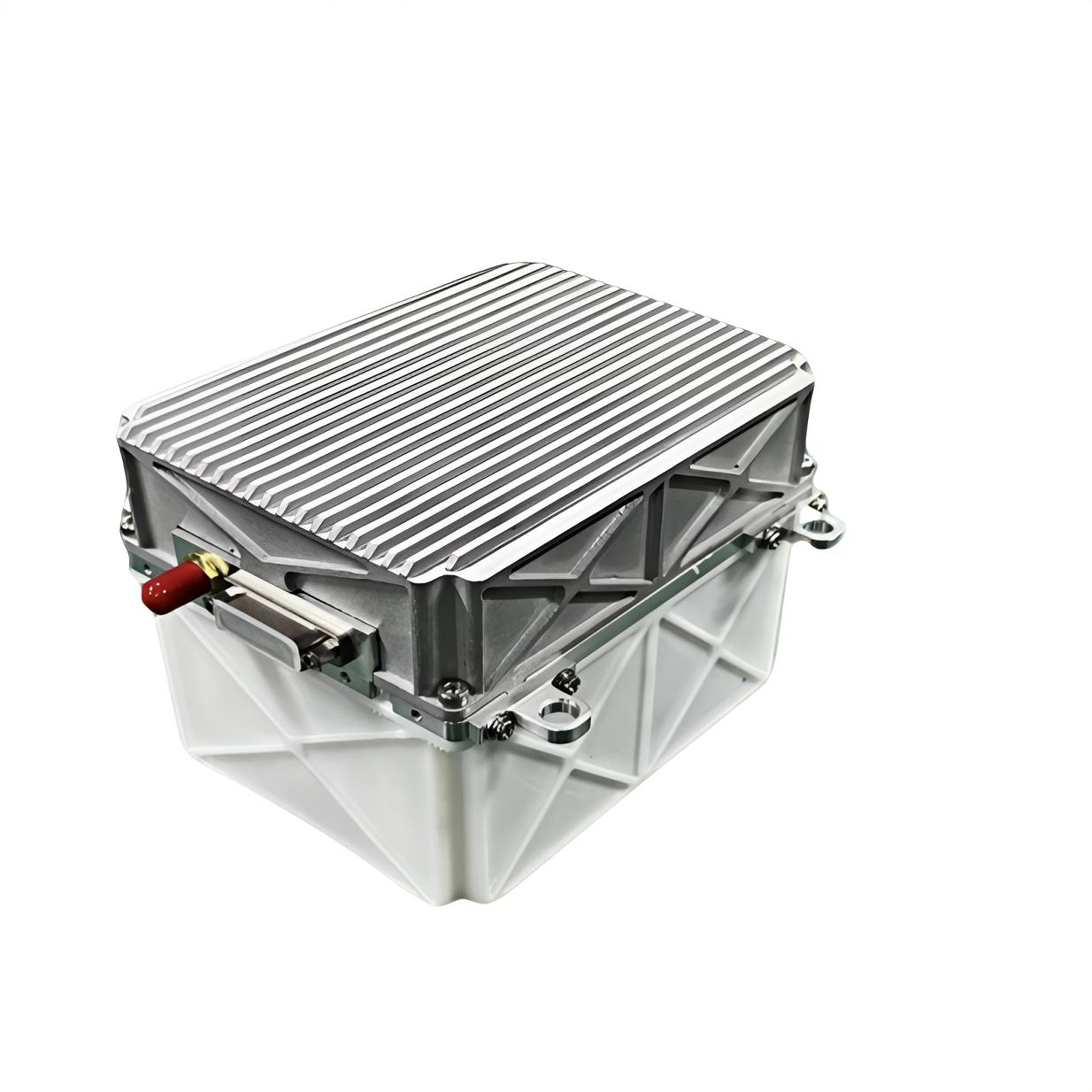

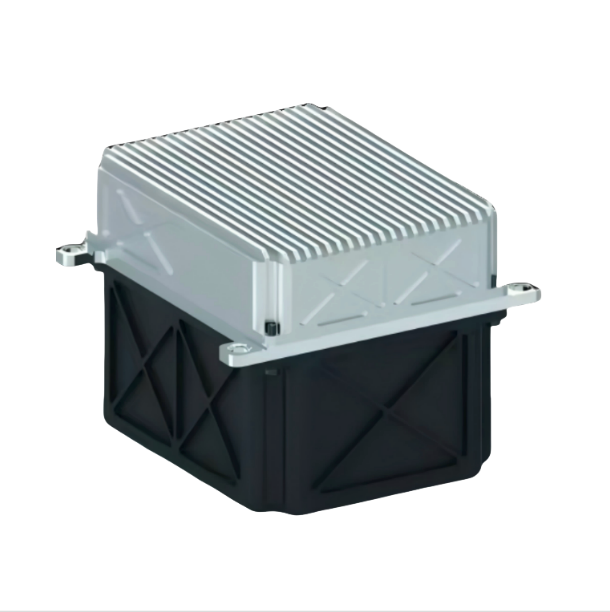

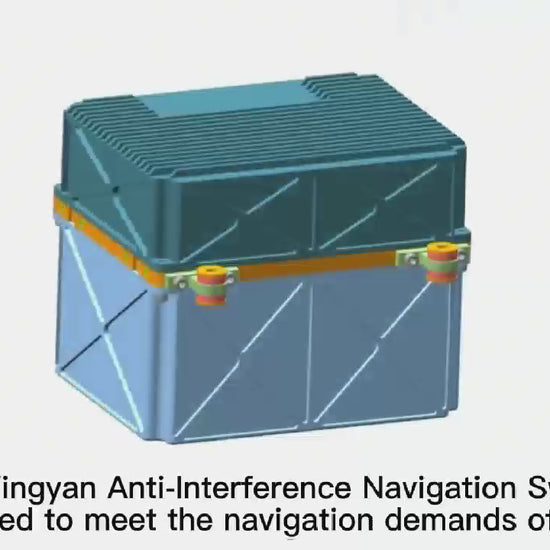

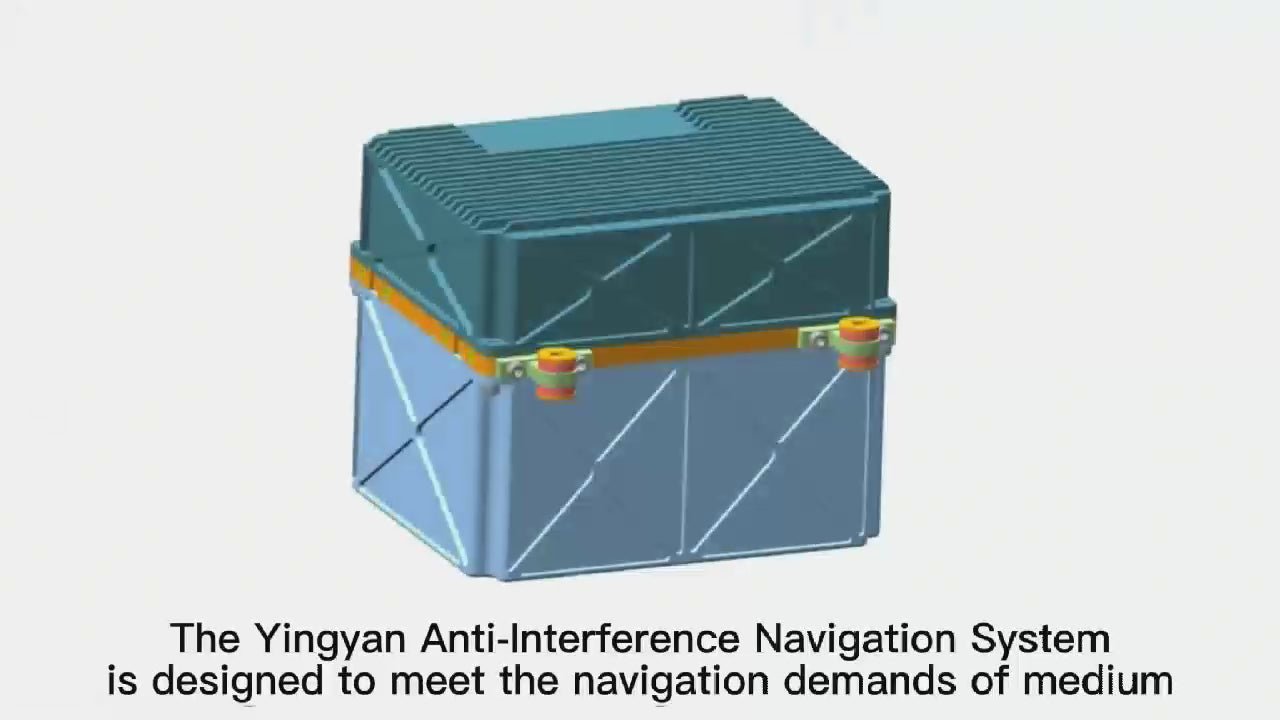

Uav Resistance Guard Guide Module

1. Product Overview

• Weight: 800g
• Anti-guard guide module is widely applicable to the navigation requirements of medium-long range UAVs
• Can be used on high-altitude long-endurance UAVs, low-altitude UAVs, and patrol missiles
• The product relies entirely on its own equipment
• Maintains a navigation accuracy within 100 meters throughout the entire journey
• Does not depend on satellite navigation signals
• Allows UAVs to reach designated targets with confidence
• Engineered for reliability
• Excels in harsh terrains such as deserts and Gobi landscapes
• Delivers stable and accurate navigation
• Compact, lightweight, and quick to deploy with no setup time
• Ready for immediate use—perfect for dynamic battlefield conditions where adaptability is crucial

2. Key Technology Features

• Anti-surveillance guide module benefits from the original algorithm and software
• Integrates satellite navigation receiver, inertial navigation, and selective navigation
• Forms a UAV airborne integrated navigation product
• Provides continuous, stable, and reliable position data in the absence of satellite navigation signals
• Perfectly solves the navigation problems of UAVs without interference
• Unlimited distance and no preparation
• Significantly enhances the market competitiveness of UAVs

3. Flight Capabilities

• Applicable height: Below 3000 meters, flying in the cloud base
• Flight duration: No limit
• Flight range: No limit
• Flight speed: Less than 100m/s
• Navigation accuracy: The overall error is less than 100 meters

4. Physical Characteristics

• Volume: ≤100mm × 80mm × 70mm
• Weight: ≤700g

5. Interface & Protocol

• Data interface: RS-422, RS-232, TTL, Network port (choose from the above options)
• Protocol: Can be customized according to user requirements
• Data frequency: 1–5Hz

6. Working Conditions

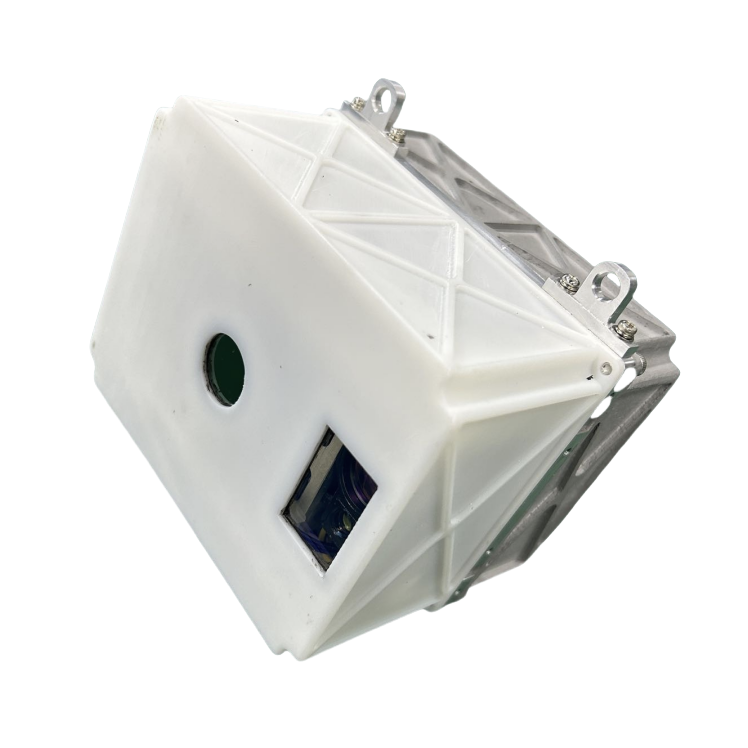

• Working band: Infrared 8–14 μm; Laser 1.54 μm
• Power consumption: ≤25W
• Working temperature conditions: -20℃ to +50℃ (can be expanded according to user needs)
