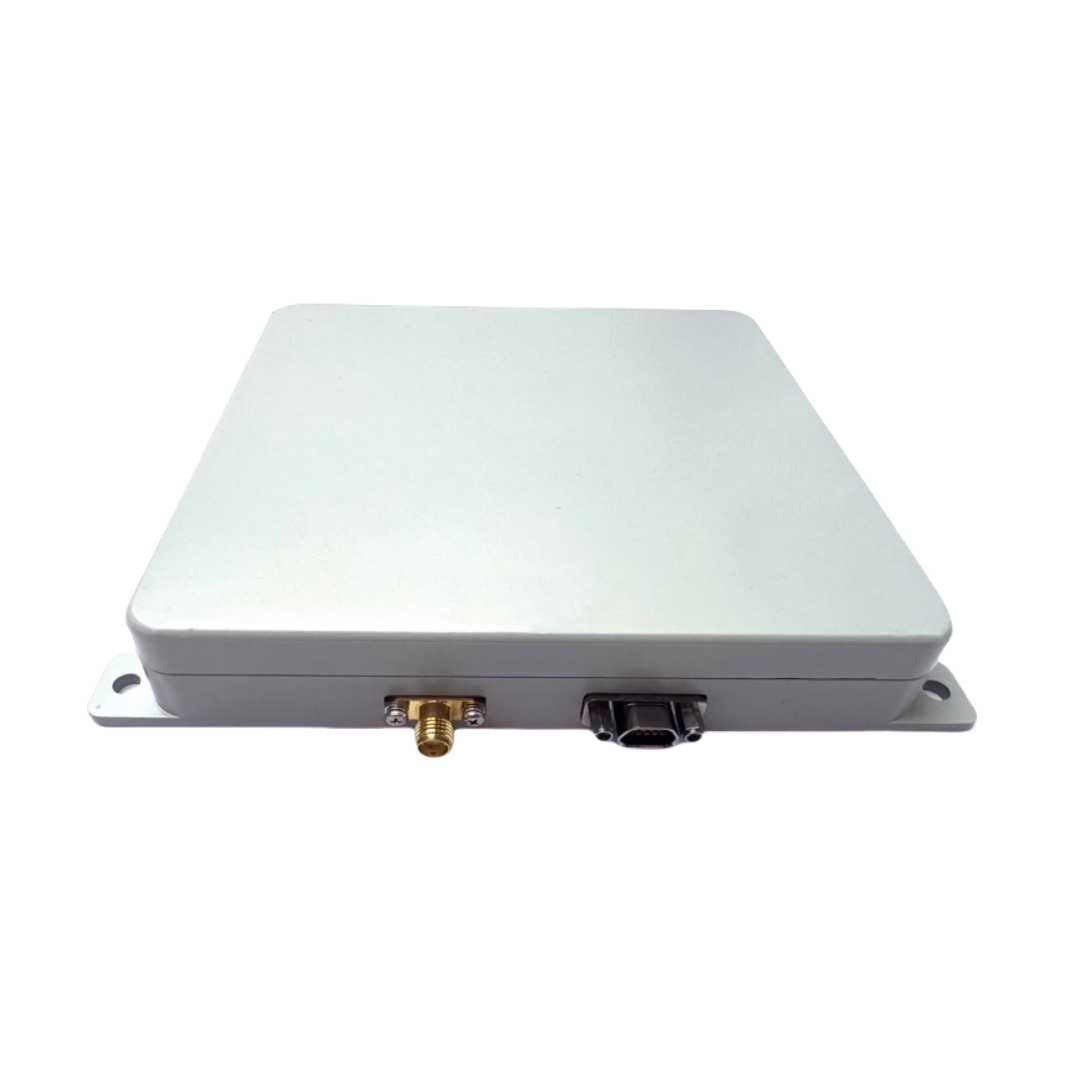

TX2501-AJS-4CH-DPA
Dual-frequency anti-jamming GNSS antenna for UAVs
The Miniaturized Dual Anti-jamming Integrated Unit is a compact satellite navigation anti-jamming and anti-spoofing device designed for civilian UAVs and industrial applications. It supports dual-frequency signal reception (GPS L1 and BDS B1I) and is compatible with the BeiDou-3 system. The device features broadband anti-jamming capabilities, simultaneously resisting up to three jammers, and provides anti-spoofing functionality. It integrates the antenna array, anti-jamming module, and GNSS receiver into a single device, characterized by its miniaturization, light weight, and low cost.
Anti-interference performance:
Unidirectional interference suppression: ≥ 105 dB
Three-way interference suppression: ≥ 95 dB
Anti-spoofing performance:
Output residual spoofing signal C/N0: ≤ 20 dB
Interference type:
Band-limited white Gaussian noise, matched spectrum spread spectrum, pulse, scan, and mixed interference.
Anti-interference coverage:
Azimuth: 0 ~ 360°
Altitude: -90 ~ 90 °
Physical specifications:
Dimensions: 150 mm × 130 mm × 22 mm
Power consumption: ≤ 13 W (at room temperature)
Weight: ≤ 520g
RF output specifications:
Output signal frequency: 1561.098 MHz / 1575.42 MHz
Output power: -70 ~ -60 dBm
