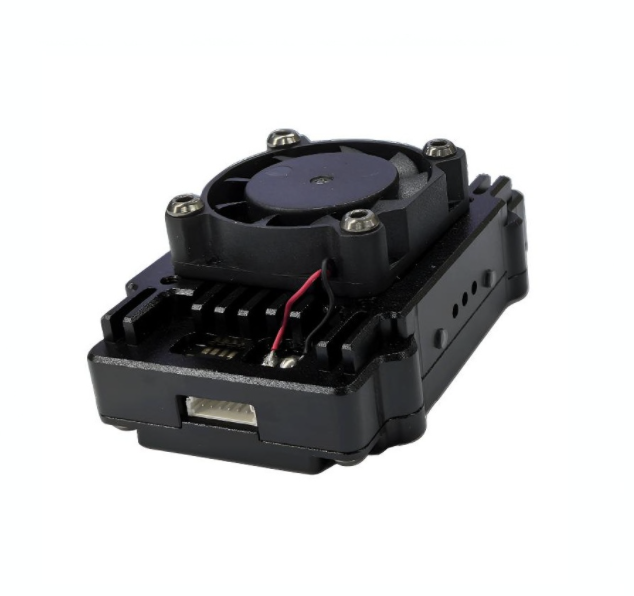

VTX 4.9 5.8GHz 4W video Transmitter

1. Output Power

• Selectable levels: 25 mW, 200 mW, 500 mW, 1000 mW, 4000 mW

2. Power Supply

• Voltage range: 7V to 30V

3. Frequency Specifications

• Frequency Band: 4990 MHz to 5945 MHz
• Channels: 56CH
• Modulation Type: FMI
• Frequency Control: PLL
• Frequency Stability: ±100 KHz (Typical)
• Frequency Precision: ±200 KHz (Typical)

4. Signal Quality

• Signal-to-Noise Ratio (Fo±3MHz):
• >70 dBc

5. Interfaces

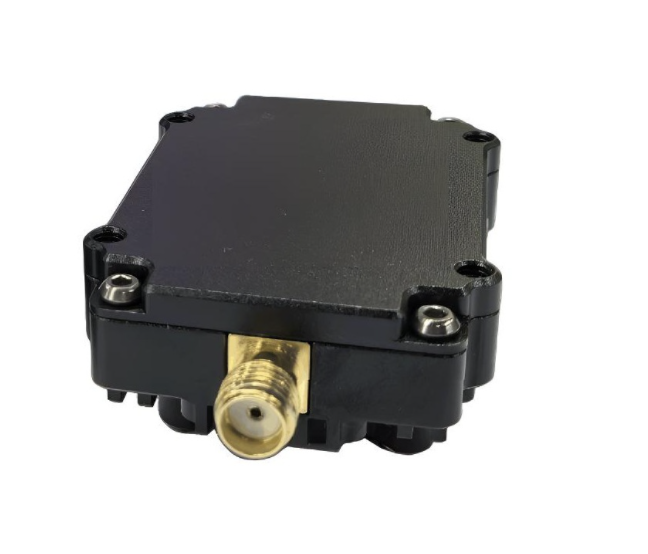

• Antenna Port: 50 Ohms (SMA)
• Video Input Level: 1V ± 0.2V p-p (typical)

6. Environmental Conditions

• Operating Temperature: -10°C to +60°C

7. Physical Dimensions

• Size: 48.5 mm (L) × 35 mm (W) × 21.5 mm (H)
